LISM [Terrain Camera (TC), Multiband Imager (MI), Spectral Profiler (SP)]
Outline of Instrument

Three high-performance optical instruments (TC, MI, SP) are installed on KAGUYA.

  1. Terrain Camera (TC)
  2. Multi band Imager (MI)
  3. Spectral Profiler (SP)

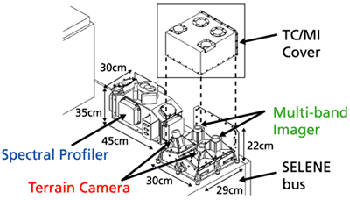

Three high-performance optical instruments (TC, MI, SP)
TC/MI Flight model
TC Flight model MI Flight model
SP Flight model
SP Flight model

Spatial resolution 10m VIS: 20 m, NIR 62m 562 x 400 m
Field of view Full mode : 22.4 degrees
Nominal mode : 19.3 degrees
Half mode : 9.65 degrees
VIS:11 degrees (19.3km)
NIR:11.2 degrees (19.6km)
0.23 degrees
Spectroscopic method Bandpass filter Bandpass filter Diffraction grating
Number of bands 2(Stereo) VIS : 5 NIR : 4 296
Band width 420 nm 10-50 nm 6-8 nm
Wavelength 0.43-0.85 micrometer VIS: 0.415・、0.75・、0.9
0.95・、1.0 micrometer
NIR: 1.0・、1.05・、1.25,
1.55 micrometer
VIS: 0.52-0.96 micrometer
NIR1: 0.9-1.7 micrometer
NIR2: 1.7-2.6 micrometer

Principle of Observation

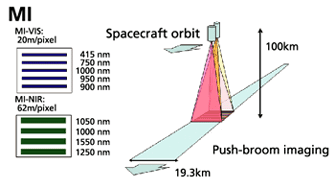

Both TC and MI are push-broom type imagers and continuously observe the lunar surface. For stereoscopic observation, TC has two telescopes with one-dimensional detectors looking at forward and backward directions, respectively. MI has two nadir-looking telescopes with two-dimensional detectors and bandpass filters to observe in nine different wavelengths.
SP is a spectrometer observing the lunar surface below the spacecraft and separate the light reflected at the surface in 296 wavelengths using two gratings.


Results Expected

LISM will provide first precise topographic, geologic, and mineralogical information of the moon. For example, from LISM data at especially interesting areas such as crater central peaks, we can understand accurate rock and mineral distribution at those areas.

Quality of LISM data is better than previous lunar exploration satellite data in following points:

  1. First global topographic data using stereo images.
  2. Precise geologic unit information in higher spatial resolution of one order of magnitude using both of known and newly acquired color images.
  3. First direct mineralogical discrimination/identification from continuous reflective spectra.

PI Introduction
TC Jun'ichi Haruyama

Jun'ichi Haruyama

Department of Planetary Science,

MI Makiko Ohtake

Makiko Ohtake

Department of Planetary Science,

SP Tuneo Matunaga

Tsuneo Matsunaga

Office for Global Environmental Database,
